Esco Pro Series 10381 Air Hydraulic Bottle Jack 20 Ton
Regular price
$329.95
Couldn't load pickup availability
Sharing is caring, right? Share this product or our store on your social media! 😃

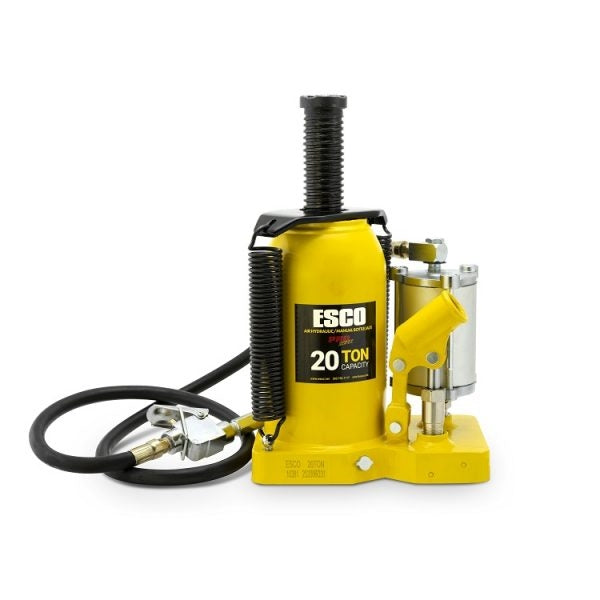

Esco 20 Ton Air Hydraulic Bottle Jack
- Fully welded cylinder and frame provide superior strength and extended service life.
- Extra thick jack base provides exceptional support and stability in severe conditions.
- The compact design makes these jacks great for multiple applications including Commercial Truck, Bus, Tractor & Farm Equipment, and much more.
- Chrome-plated piston for extra rust and corrosion resistance.
- Fitted with a safety valve to prevent overloading.
- Double spring design for controlled and safe descent while releasing pressure from the cylinder.
- Heat Treated Adjustable Extension Screw provides additional and precise height adjustments. Assists in not overextending cylinder to reach designed heights.
- Design to be operated using air or manually with included two-piece lifting/lowering handle.
- Includes 4 ft. swivel end air hose with easy to use handheld push-button air trigger. Air trigger includes 1/4 in. NPT fitted air inlet, in-line air filter (extends the life of air motor), and airflow latch- for easier constant airflow while raising of the jack to load.
- Fitted with a heavy-duty constructed chrome-plated air motor designed with wear-resistant parts to ensure longevity and dependability in any lifting application.
- Capacity 20 Ton
- Min. Height 10 in.
- Max. Height 20 in.
- Ram Travel 6 in.
- Screw Adjustment 4 in.
- Saddle Width 1.75 in.
- Base Thickness 1.25 in.
- Base Size L x W 8.875 x 5.75 in.
- Inner Package 10.5 x 8.125 x 11.5 in.
- Outer Package 10 x 8 x 11 in.
- Net Weight 41 lbs.
- Gross Weight 42 lbs.
- Air Inlet Fitting 1/4 in. NPT
- Air Pressure 110-125 psi
- Warranty 1-Year
- UPC 816904024871
