Esco 10103 Bead Breaker Giant Tire
Regular price
$1,084.00
Couldn't load pickup availability
Sharing is caring, right? Share this product or our store on your social media! 😃

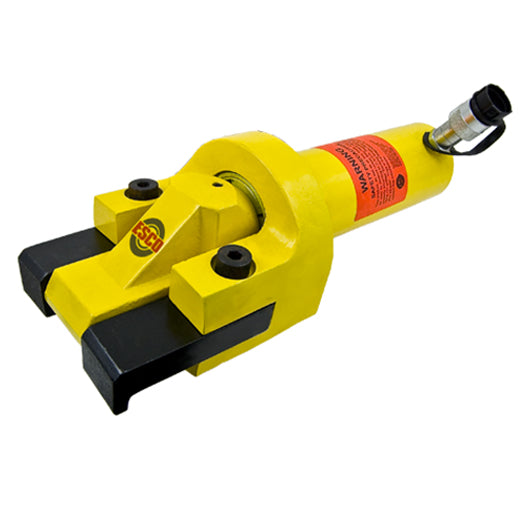

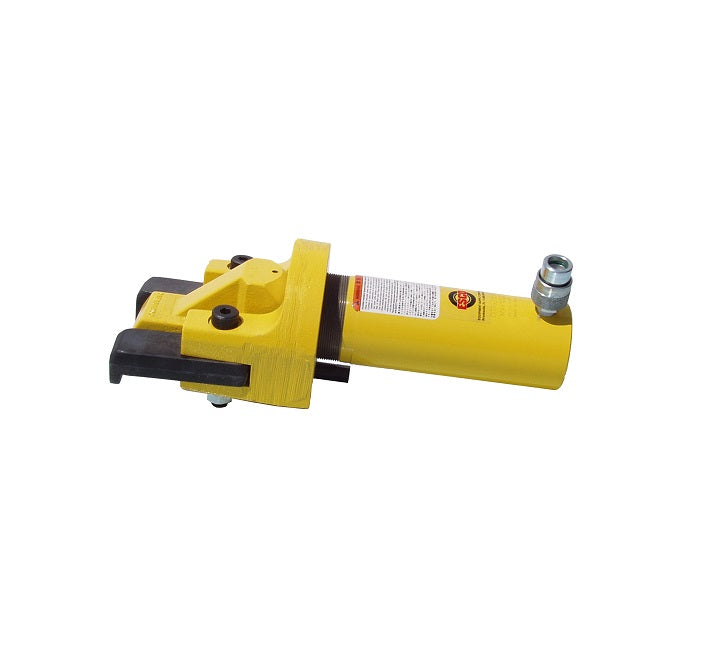

Esco Bead Breaker Giant Tire
The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application. Use on 5 piece rims 39 , 45, 51, 57, and 63 in. wheel sizes. In some cases you must first use Model #10105 or the Model #10100 bead breaker to start the movement of the rim flange; the Model #10103 can then be used. Model #10504, air/hydraulic pump is recommended for operation. The Model #10627 Kit converts the Model #10103 into a Model #10103L, which is capable of Working on 63 in. Rims.
- Ram Tonnage 25 Tons
- Stroke 6 in.
- Max Pressure 10,000 PSI
- Length 16.5 in.
- Width 6.5 in.
- Weight 54 lbs.
- Warranty 3 Years (Must Register Product to Qualify for 3-Year Warranty Extension)
- UPC 816904021245
