Description

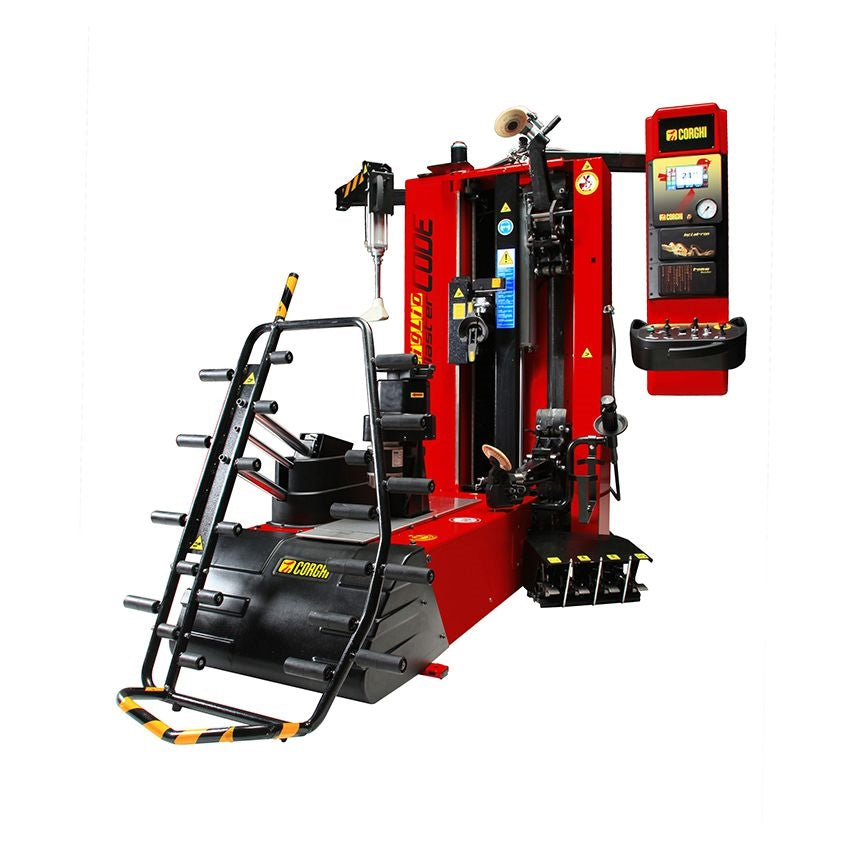

The Corghi Artiglio Master Code is an automatic touchless tire changer that mounts and demounts conventional, low-profile and run-flat tires without the tools ever touching the rim. Automatic wheel data acquisition and fully automated work cycles help tire shops work faster and more consistently while protecting high-value wheels.
- Truly contactless: the Smart Corghi System demounts and mounts tires with no tool contact on the rim, minimizing the risk of wheel damage.
- Automatic wheel data acquisition: the machine reads wheel dimensions and positions its tools automatically, cutting setup time and operator error.
- Four fully automated work cycles: choose automatic or manual operation on a touchscreen.
- Double bead breaker with controlled penetration: opposed upper and lower discs (7,300 N each, 19" maximum bead-breaking range) work stiff sidewalls with precision.
- Automatic clamping for 13" to 32" rims: handles tires up to 47" (1,200 mm) in diameter.
- Powerful, controlled rotation: a 2-speed inverter motor delivers 1,200 Nm of torque at 7–20 RPM.
- Built-in wheel lifter: 187 lb (85 kg) capacity reduces operator strain on heavy assemblies.
