Description

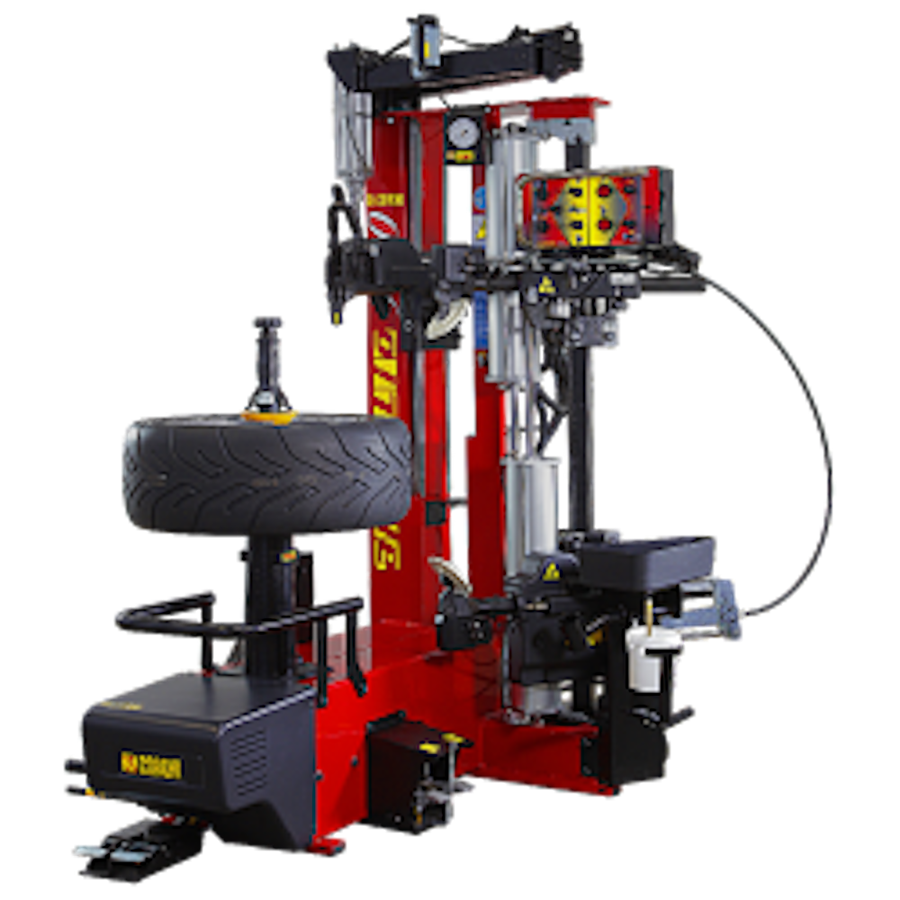

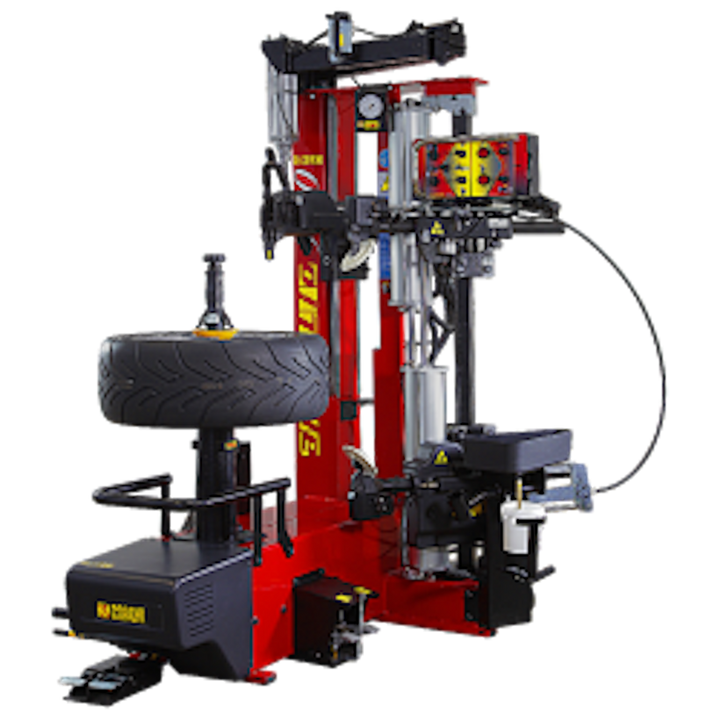

Corghi Artiglio 5000 (AM5000) Leverless Tire Changer
Vampa Part #: CRG-AM5000 | Corghi Part #: 0-11118834/00
The Corghi Artiglio 5000 is a leverless tire changer for conventional, low-profile and run-flat tires on 13" to 28" rims. Corghi's third-generation leverless design uses a patented contactless head that never touches the rim, while the LITE Smart Corghi System reduces stress on the tire during the toughest mounting and demounting steps.
- Contactless Smart Corghi System: the patented head positions itself automatically and protects rims and tires during mounting and demounting.
- Dynamic dual bead breaker with controlled penetration: mirror-image discs move in sync with automated positioning for precise, repeatable bead breaking.
- 7,600 N bead breaker force: a 26.4" (670 mm) maximum bead-breaking range and 21.3" (540 mm) stroke handle all tire types.
- Rapid second-bead demounting: patented disc movement, ideal for stiff sidewalls.
- Multifunctional control console: every control within easy reach, including dual controls for dynamic bead breaking and match mounting.
- Wheel capacity: clamps 13" to 28" rims and tires up to 47" (1,200 mm) in diameter and 15" (381 mm) wide.
- Strong, controlled rotation: a 2-speed moto-inverter motor delivers 1,100 Nm (811 ft-lb) at 7–18 RPM.
- Standard pneumatic wheel lifter: loads wheels up to 187 lb (85 kg).
- Tilting mounting tool: a dedicated control positions the head quickly.
- Emergency hook: tool rotation makes fitting the bead easier on extra-soft tires.
- Adjustable-height bead depressor: shaped for run-flat tires.
- Ergonomic working height: suits every wheel type and operator.
- Power and air: 110 V or 230 V, 1-phase, 50/60 Hz, 0.98 kW (1.31 hp); minimum air pressure 116 psi (8 bar).
- Size and weight: 52" x 62" x 73.2" H (1,321 x 1,575 x 1,859 mm), 937 lb (425 kg).
- Optional accessories: TI quick-inflation kit (8-11120053, or ASME 8-11120054 for USA/Canada), reverse wheel flange (8-11100039), van wheel kit (8-11100086), universal reverse-wheel flange (8-11100087), sliding bead pressing clamp (8-11100120).
- Warranty: 2 years parts, 1 year labor.
