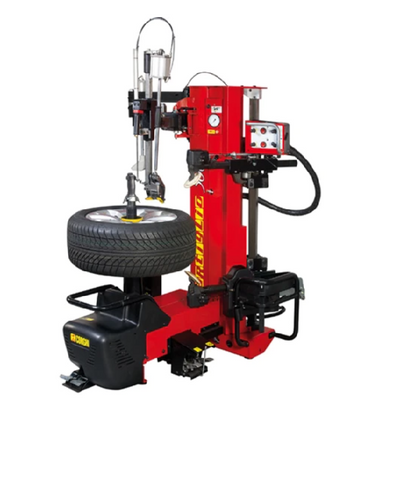

Corghi Artiglio 500 (AM500) Leverless Tire Changer
Vampa Part #: CRG-AM500 | Corghi Part #: 0-11108234/00
The Corghi Artiglio 500 is an automatic leverless tire changer for car, SUV and light commercial wheels on 12" to 32" rims. A natural evolution of the Artiglio 50, it uses Corghi's second-generation "Leva la Leva" (without lever) head and a dynamic dual-disc bead breaker to make demounting effortless while protecting rims and tires, even on low-profile and run-flat tires.
- Second-generation "Leva la Leva" technology: the patented head demounts tires with no lever and no operator effort, while the mounting procedure stays just as quick and convenient.
- Dynamic dual bead breaker: mirror-image discs with automatic radial positioning remove the need for manual disc positioning.
- Controlled penetration: the patented bead breaking system and synchronized, symmetrical disc movements deliver precise, fast and repeatable bead breaking.
- 1,710 lbf (7,600 N) bead breaker force: a 26.4" (670 mm) maximum bead-breaking range and 21.2" (540 mm) stroke handle all tire types.
- Rapid second-bead demounting: a patented disc movement speeds bottom-bead removal, ideal for stiff sidewalls.
- Multifunctional control console: all operating controls in one place, with dual controls for dynamic bead breaking and rim-and-tire match mounting.
- Wheel capacity: 12" to 32" rims and tires up to 47.2" (1,200 mm) in diameter and 15" wide (from the wheel support base).
- Tire types: conventional, low-profile and run-flat.
- Safe, universal wheel clamping: the axial-mounting turntable with mechanical-manual clamping secures the wheel once and breaks both beads without turning the wheel over.
- Strong, controlled rotation: a 2-speed moto-inverter drive delivers 811.8 ft-lb (1,100 Nm) at 7 to 18 RPM.
- Standard pneumatic wheel lifter: loads wheels up to 187.4 lb (85 kg) onto the turntable with no effort.
- Ergonomic working height: a constant working height (except reverse rims) suits every wheel type and operator.
- Power and air: 230 V 1-phase 0.98 kW 50/60 Hz, or 110 V 1-phase 0.98 kW 50/60 Hz alternative; minimum operating pressure 116 psi (8 bar).
- Weight: 837.7 lb (380 kg) with wheel lifter.
- Optional accessories: pick-up/van rim kit (8-11100086), universal flange for closed rims (8-11100087), reverse wheel flange (8-11100039), PAX system kit (8-11100338), reverse mount wheel adapter (8-11100073), large hub spacer set (8-11100046), TI tire inflation system (8-15100022).
- Warranty: 2 years parts, 1 year labor.
