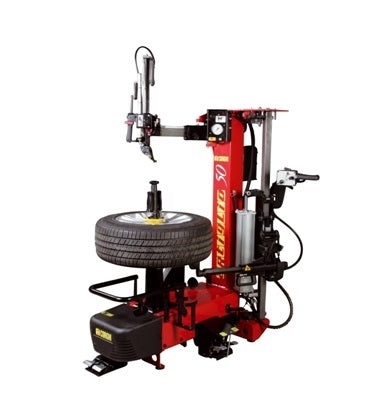

Corghi Artiglio 50 (AM50) Leverless Tire Changer
Vampa Part #: CRG-AM50 | Corghi Part #: 0-11105034/00
The Corghi Artiglio 50 is an automatic leverless tire changer for car, SUV and light truck wheels on 12" to 30" rims. Its "Leva la Leva" (without lever) head removes the physical effort and the risk of damaging delicate or demanding rims and tires, while cutting working times on the latest-generation wheels, from low-profile to run-flat. A compact design with ergonomic working heights and controls adds a 180° swing single-arm bead breaker and the "Easy To Fit" concept for quick, effective maintenance.
- "Leva la Leva" technology: the patented mount/demount head uses the usual working movements but requires no effort from the operator, and the mounting procedure stays just as quick and convenient.
- Single-arm automatic bead breaker: the bead breaking unit swings 180° to give quick, accurate and repeatable bead breaking on both sides of the tire, with a pneumatic swing arm to position it on the underside.
- Controlled penetration: the controlled penetration system gives effective bead breaking on even the most difficult wheels.
- Two bottom-bead procedures: a standard bottom-bead demount with the head, plus a rapid procedure with the bead breaker disc that is ideal for stiff sidewalls.
- 1,710 lbf (7,600 N) bead breaker force: a 26.4" (670 mm) maximum bead-breaking range and 21.3" (540 mm) stroke.
- Wheel capacity: 12" to 30" rims and tires up to 47.2" (1,200 mm) in diameter and 15" wide (from the wheel support surface).
- Tire types: conventional, low-profile and run-flat.
- Axial-mounting turntable: mechanical-manual clamping secures the wheel once and breaks both beads without turning the wheel over.
- Strong, controlled rotation: a 2-speed moto-inverter drive delivers 811.8 ft-lb (1,100 Nm) at 7 to 18 RPM.
- Standard pneumatic wheel lifter: rated for a maximum wheel weight of 187.4 lb (85 kg).
- Ergonomic working height: the machine height suits all wheel types and operators (except reverse rims), with all movement controls conveniently to hand.
- Power and air: 230 V 1-phase 0.98 kW 50/60 Hz, or 110 V 1-phase 0.98 kW 50/60 Hz alternative; minimum operating pressure 116 psi (8 bar).
- Size and weight: 59" x 50.8" x 78.7" (1,500 x 1,290 x 2,000 mm) L x W x max H with wheel lifter; 683.4 lb (310 kg) with wheel lifter.
- Optional accessories: pick-up rim kit (8-11100086), universal flange for closed rims (8-11100087), reverse wheel flange (8-11100039), PAX system kit (8-11100118), TI tire inflation system kit, bead pressing tool (BPT).
- Warranty: 2 years parts, 1 year labor.
