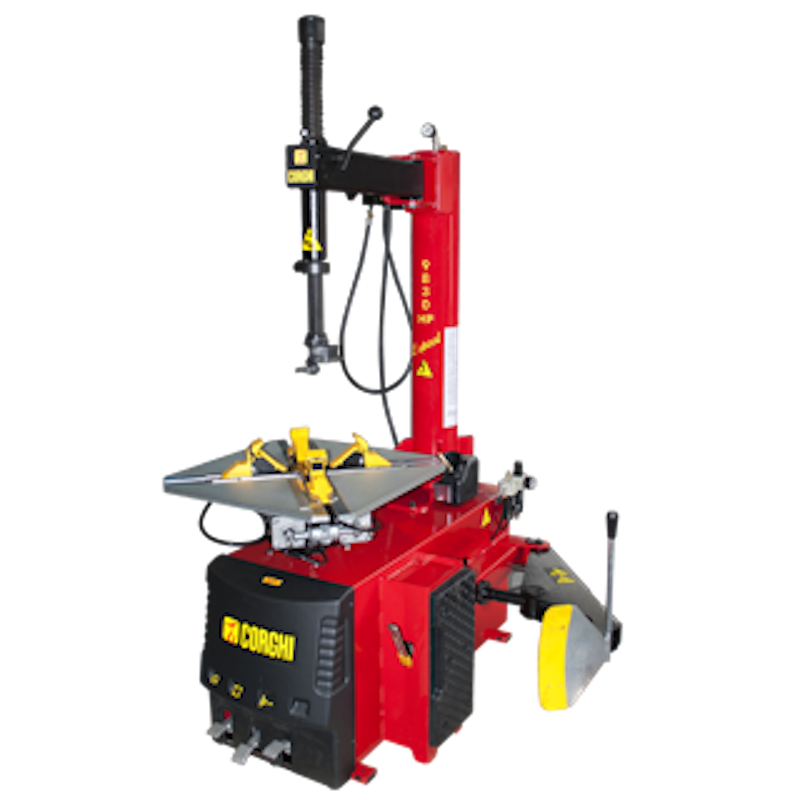

Corghi A9830FBB Swing Arm Tire Changer with Foot-Operated Bead Breaker
Corghi Part #: 0-11119004/00 (Electric)
The Corghi A9830 FBB is a heavy-duty semi-automatic swing arm tire changer with a foot-operated bead breaker (FBB), designed for passenger cars, SUVs, light trucks, and high-performance tires. This is the foot pedal version of the A9830, not the hand bead breaker (HBB) model. Featuring a powerful two-speed turntable, wide rim clamping capacity, and durable construction, this machine delivers reliable performance, precise wheel handling, and efficient mounting and demounting operations for professional tire service shops.
- Foot-operated bead breaker (FBB): pedal-controlled bead breaker delivers up to 3,500 lbs of force for effective bead separation on difficult tire assemblies, keeping the operator's hands free to position the tire.
- Heavy-duty swing arm design: manually operated column swings to the side for convenient wheel positioning and efficient tire service.
- Two-speed turntable: high-torque bidirectional rotation provides improved control and efficiency when servicing difficult tires.
- Wide rim clamping range: accommodates 10"–26" rims externally and up to 29" internally, with optional adapters available for specialized applications.
- Rim-protecting mount/demount head: locking mechanism maintains clearance between the tool head and rim to help prevent wheel damage.
- Built-in bead inflation system: integrated air jets in the turntable jaws assist with tire bead seating.
- Heavy-duty stainless steel turntable: durable construction provides reliable operation in demanding professional environments.
- Rebuildable cylinders: designed for long-lasting performance and simplified maintenance.
- Large tire capacity: accommodates tires up to 47" in diameter and 14" in width.
- High-performance tire compatibility: suitable for low-profile and UHP tires, with optional assist arms available for run-flat and challenging tire assemblies.
- Optional power assist units: compatible with Corghi PU1500 and BPT accessories for additional bead-handling assistance.
- Electrical requirements: operates on 110V single-phase power with a compressed air supply.
