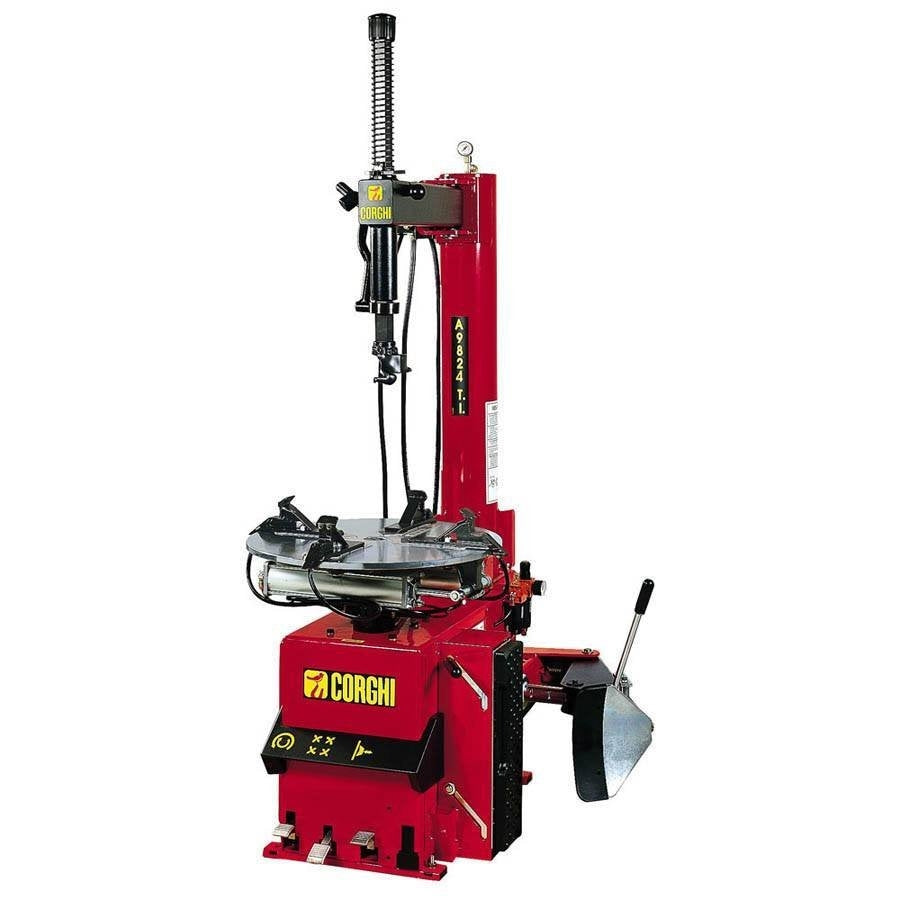

Corghi A9824Ti Swing Arm Tire Changer
Corghi Part #: 0-11101764/00 (Electric)
The Corghi A9824Ti is a heavy-duty automatic swing arm tire changer designed for passenger cars, SUVs, light trucks, low-profile, and high-performance tires. Featuring a powerful two-speed electric turntable, 24" outside rim clamping capacity, and a rim-protecting mount/demount head, this machine delivers reliable performance, precise wheel handling, and efficient tire service for professional automotive shops.
-
Two-speed electric turntable: high-torque bidirectional rotation provides improved control and efficiency during mounting and demounting.
-
Heavy-duty swing arm design: upper arm swings out of the way for convenient wheel positioning and efficient tire service.
-
Rim-protecting mount/demount head: locking mechanism maintains clearance between the tool head and rim to help prevent wheel damage.
-
Wide rim clamping range: accommodates 10"–24" rims externally and 13"–26" internally, with optional adapters extending external capacity to 8"–28".
-
Powerful bead breaker: delivers up to 3,500 lbs of force with a contoured blade for effective bead separation.
-
Built-in bead inflation system: integrated air jets in the turntable jaws assist with tire bead seating.
-
Heavy-duty stainless steel turntable: durable construction provides reliable operation in demanding professional environments.
-
Rebuildable stainless steel cylinders: designed for long-lasting performance and simplified maintenance.
-
Large tire capacity: accommodates tires up to 47" in diameter and rims up to 14" wide.
-
Bead-pressing lever: included tool provides additional assistance when mounting difficult tires.
-
Optional power assist units: compatible with Corghi PU1500 and BPT accessories for additional bead-handling assistance.
-
Electrical requirements: operates on 110V single-phase power with a 150 PSI compressed air supply.
