Corghi A9824Ti-BPT Swing Arm Tire Changer with BPT Assist Arm
Corghi Part #: 0-11101764/00 (Electric)
BPT Assist Arm Part #: 8-11100100

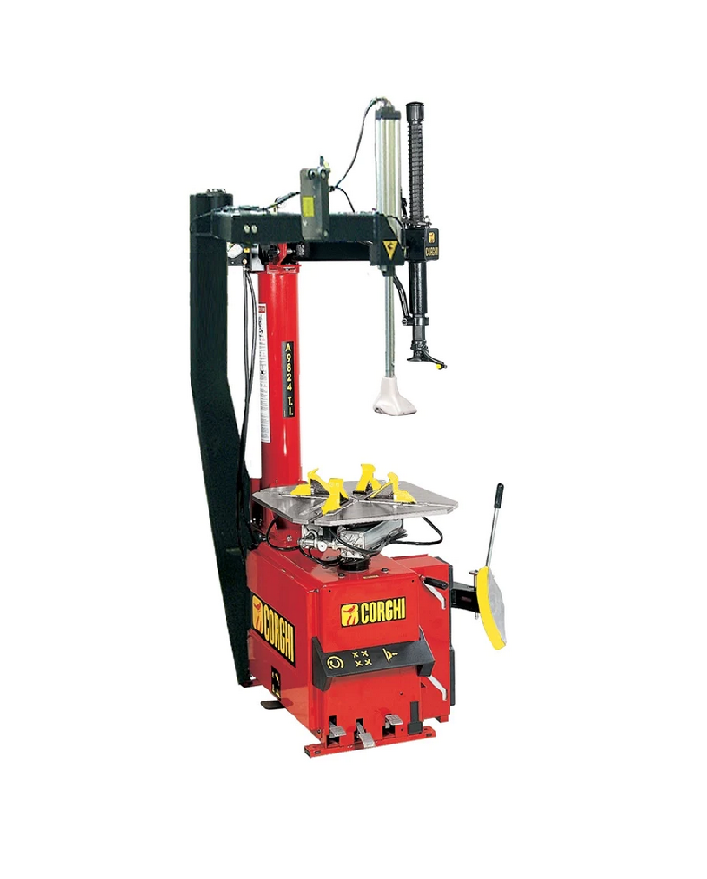

The Corghi A9824Ti-BPT is a heavy-duty electric swing arm tire changer designed for passenger cars, SUVs, light trucks, low-profile, and run-flat tires. Equipped with a BPT bead pressing assist arm, powerful two-speed turntable, and wide rim clamping capacity, this machine provides enhanced control when handling difficult tire assemblies while reducing operator effort. Its durable construction, rim-protecting mount/demount head, and efficient tire-handling features make it an ideal solution for professional tire service shops.
-
BPT bead pressing assist arm: provides additional assistance to keep stiff tire beads in the rim's drop center, making low-profile and run-flat tire mounting easier while reducing operator effort.
-
Two-speed electric turntable: high-torque bidirectional rotation provides improved control and efficiency during mounting and demounting.
-
Heavy-duty swing arm design: upper arm swings out of the way for convenient wheel positioning and efficient tire service.
-
Wide rim clamping range: accommodates 10"–24" rims externally and 13"–26" internally, with optional adapters extending external capacity to 8"–28".
-
Rim-protecting mount/demount head: locking mechanism maintains clearance between the tool head and rim to help prevent wheel damage.
-
Powerful bead breaker: delivers up to 3,500 lbs of force with a contoured blade for effective bead separation.
-
Built-in bead inflation system: integrated air jets in the turntable jaws assist with tire bead seating.
-
Heavy-duty stainless steel turntable: durable construction provides reliable operation in demanding professional environments.
-
Rebuildable stainless steel cylinders: designed for long-lasting performance and simplified maintenance.
-
Large tire capacity: accommodates tires up to 47" in diameter and rims from 3.5" to 14" wide.
-
High-performance tire compatibility: BPT assist arm provides additional support when servicing low-profile, UHP, and run-flat tire assemblies.
-
Bead-pressing lever: included tool provides additional assistance when mounting difficult tires.
-
Electrical requirements: operates on 110V single-phase power with a compressed air supply of 150 PSI.
