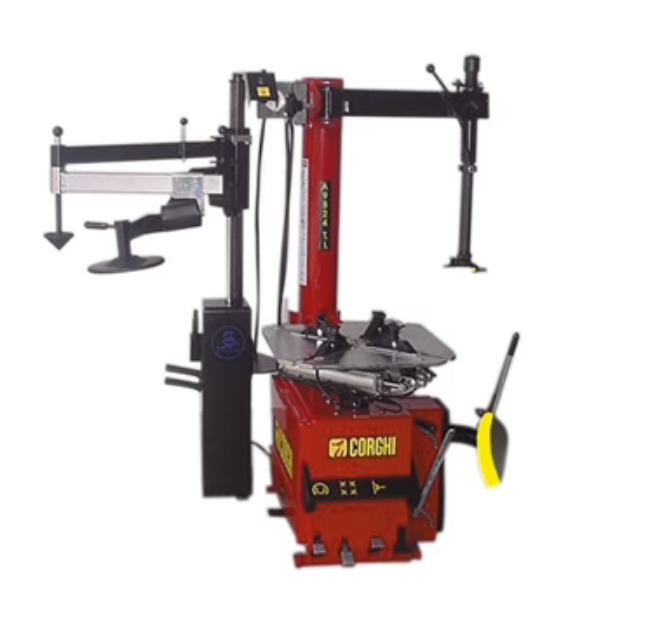

Corghi A9824Ti-1500 Swing Arm Tire Changer with PU1500 Assist Arm
Corghi Part #: 0-11101764/00 (Electric)
PU1500 Assist Arm Part #: 8-11120046
The Corghi A9824Ti-1500 is a heavy-duty electric swing arm tire changer designed for passenger cars, SUVs, light trucks, low-profile, and run-flat tires. Equipped with the PU1500 pneumatic power assist arm, this machine provides enhanced control when handling difficult tire assemblies while reducing operator effort. Its powerful two-speed turntable, wide rim clamping capacity, and durable construction make it an ideal solution for professional tire service shops.
-
PU1500 pneumatic power assist arm: provides additional bead pressing and lifting assistance when mounting and demounting stiff sidewall, low-profile, and run-flat tires.
-
Wheel and bead pressing system: helps maintain the tire bead in the rim's drop center, reducing tire stress and operator effort during mounting.
-
Pneumatic bead lifting assistance: helps operators handle difficult tire assemblies with greater control and efficiency.
-
Two-speed electric turntable: high-torque bidirectional rotation provides improved control and efficiency during mounting and demounting.
-
Heavy-duty swing arm design: upper arm swings out of the way for convenient wheel positioning and efficient tire service.
-
Wide rim clamping range: accommodates 10"–24" rims externally and 13"–26" internally, with optional adapters extending external capacity to 8"–28".
-
Rim-protecting mount/demount head: locking mechanism maintains clearance between the tool head and rim to help prevent wheel damage.
-
Powerful bead breaker: delivers up to 3,500 lbs of force with a contoured blade for effective bead separation.
-
Built-in bead inflation system: integrated air jets in the turntable jaws assist with tire bead seating.
-
Heavy-duty stainless steel turntable: durable construction provides reliable operation in demanding professional environments.
-
Rebuildable stainless steel cylinders: designed for long-lasting performance and simplified maintenance.
-
Large tire capacity: accommodates tires up to 47" in diameter and rims from 3.5" to 14" wide.
-
High-performance tire compatibility: PU1500 assist system provides additional support for low-profile, UHP, and run-flat tires, with optional PAX wheel accessories available.
-
Electrical requirements: operates on 110V single-phase power with a 150 PSI compressed air supply.
