Description

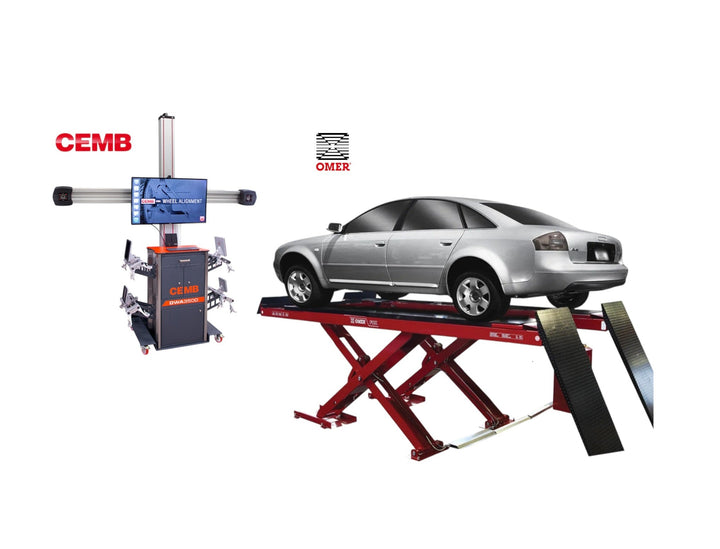

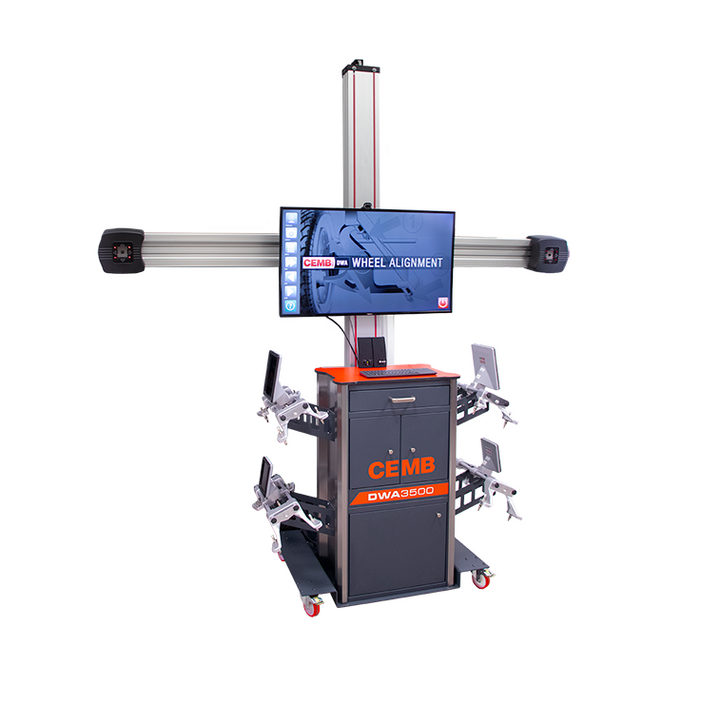

Cemb + Omer Alignment Package DWA3500 Wheel Alignment w/ FOX65CTSMX Scossir Lift and Dual 7,000 Lbs Bridge Jack
- Advance Software
- 30+ Year Vehicle Database
- Wheel Clamps
- Redesigned Cabinet
- Standard 32″ Monitor
- Portable Base
- Optional VIN Barcode Scanner
- 30+ Year Vehicle Database
- Wheel Clamps
- Redesigned Cabinet
- Standard 32″ Monitor
- Portable Base
- Optional VIN Barcode Scanner

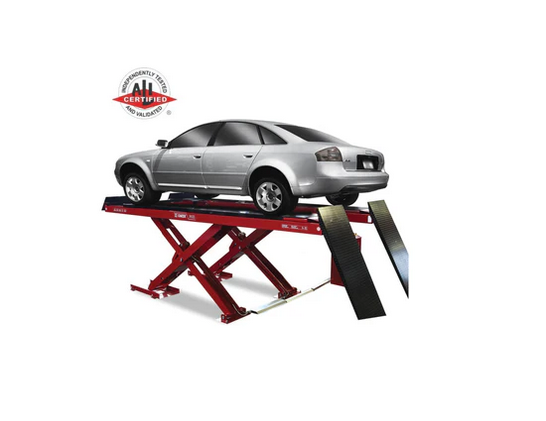

Omer 14,000 Lb Electro-Hydraulic Alignment Scissor Lifts
| Capacity | 14,000 LB. / 6.5T |
| Overall Platform Length | 219.7" / 5575 mm |
| Platform Width | 25.6" / 650 mm |
| Collapsed Height | 10.4" / 265 mm |
| Raised Height | 77.2" / 1960 mm |
| Overall Length (Surface Mounted) | 287.2" / 7290 mm |
| Length of Rear Slip Plates | 89.4" / 2270 mm |
| Maximum Service Wheel Base | 185 " / 4700 mm |
| Maximum Wheelbase for 4 wheel alignment | 185 " / 4700 mm |
| Noise Level | < 75 decibels |
| Power Requirement | 2.2 Kw 220 V / 1 phase |
| Shipping Weight | 6170 lbs / 2800 kg |
